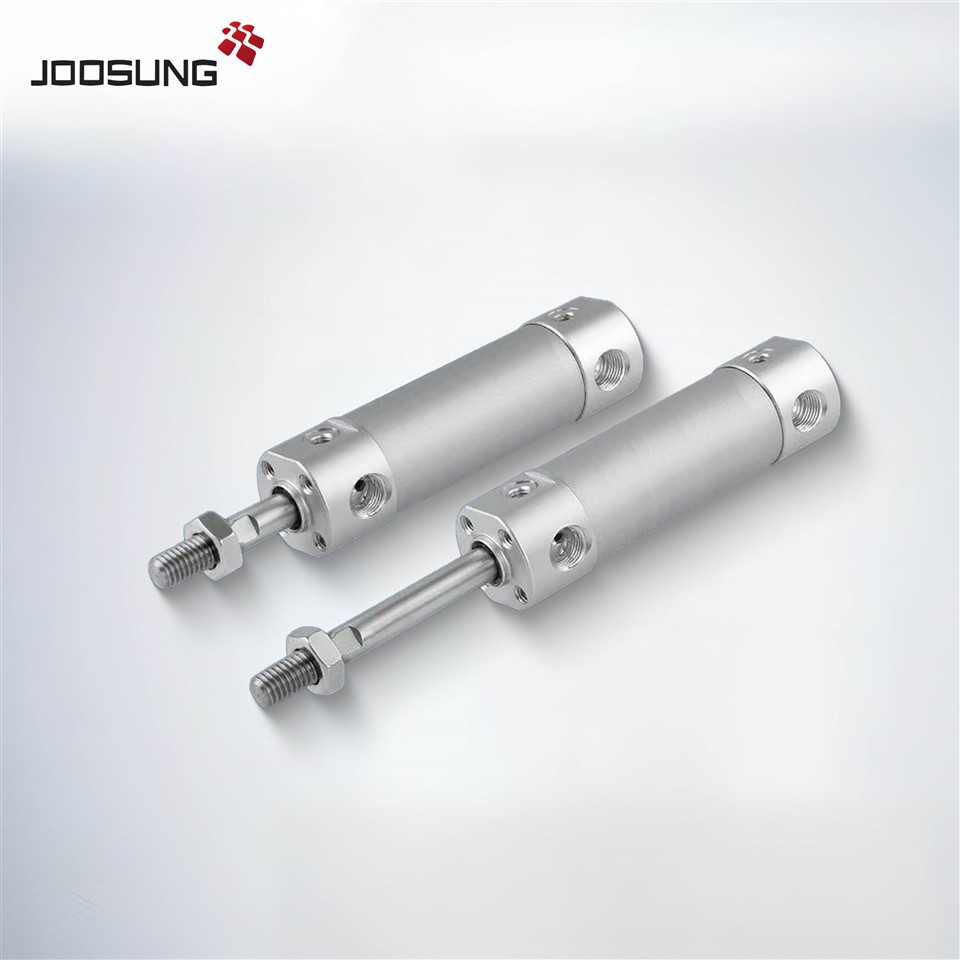

Ba .cylindre pneumatique de série CG1 .ezali ISO-Actuator ya mopepe ya momesano, oyo esalemi mpo na .Général-Utrpose ya automatisation industrielle .. Esalemi na .Tube ya aluminium oyo ezali na anodisé makasi ., Double-Piston oyo ezali kosala mosala .Design, mpe .Ba slots intégrés pona ba capteurs magnétiques ., cylindre ya CG1 esangisaka performance, durability, na entretien facile.
Série oyo ezo conformer na .ISO 15552 (oyo kala ezalaki ISO 6431)mpe ezali na bonene ya mabulu mpe bolai ya bozito ya ndenge na ndenge. Merci na yango .Interchangeability ., Bosikisiki ya kotambwisa ya likolo ., mpePression ya basse rupture ., ba cylindres CG1 ezali choix optimal pona ba tâches ya automation oyo esengaka performance constante et longue{1}}kosukisa.
|
Ndenge nini kosala commande ya CG1 Série Pneumatique Cylindre . |
||||||
|
C |
D |
G1 |
B |
N |
20 |
-100 |
|
NILL:ezali te . |
B:Basic . |
N:Bléche ya caoutchouc . |
Taille ya bore . |
AVC ya cylindre . |
||
|
D:Built-Na aimant . |
z:fil ya basi ya base . |
A:Coussin ya mopepe . |
20,25mm |
|||
|
L:makolo ya axial . |
32,40mm |
|||||
|
F:Rod bride . |
50,63mm |
|||||
|
G:Flange ya motó . |
80,100mm |
|||||
|
D:Clevis . |
||||||
Ozali koluka actionneur pneumatique oyo ekoki kozala ya kotyela motema, ISO{ koleka oyo ezali na boyokani mpo na ligne na yo ya automation?
Ya bisoBa cylindres ya série CG1 .Kopesa performance ya kowumela, interchangeability ya mokili mobimba, mpe mouvement ya malamu mpo na ba scénarios nionso ya industrie.
AVC na ba accessoires personnalisés ezali .
Ba options ya détection magnétique na ya amortissement .
Contactez-nous maintenant pona ba dessins, ba échantillons ya ofele, to ba citations en masse.
|
Ba spécifications . |
|||||||
|
Bonene ya bonene [mm] . |
8 |
10 |
12 |
16 |
20 |
25 |
|
|
Lolenge |
Pneumatique . |
||||||
|
Mosala |
Acting double,ba rod moko . |
||||||
|
Mai |
Mopepe |
||||||
|
pression ya preuve . |
1,5 MPa . |
||||||
|
Max.Pression ya kosala . |
1,0 MPa . |
||||||
|
Min.Oprating . |
Pare-chocs ya caoutchouc . |
0,1 MPa . |
0,08 MPa . |
0,05 MPa . |
|||
|
Coussin ya mopepe . |
一 |
0,08 MPa . |
0,05 MPa . |
||||
|
Ambient na fluide . |
Sans Auto Swilch:-20C à 80 degrés (pas de congelation) |
||||||
|
Na Interrupteur Auto:-10C à 60 degrés (ko congeler te) |
|||||||
|
Lubrifiant . |
Esengeli te (ezali te-Lube) . |
||||||
|
Vitesse ya piston . |
50 kino 1500 mm/s . |
||||||
|
Coussin |
Pare-chocs ya caoutchouc . |
||||||
|
一 |
Coussin ya mopepe . |
||||||
|
Alowable . |
Pare-chocs ya caoutchouc . |
0.02J |
0.03J |
0.04J |
0.09J |
0.27J |
0.4J |
|
Coussin ya mopepe . |
一 |
0.17J |
0.19J |
0.4J |
0.66J |
0.97J |
|
|
Modèle ya série . |
Ba modèles oyo ezali . |
|
Série C85N8 . |
C85N8-25,C85N8-50,C85N8-75,C85N8-80,C85N8-100,C85N8-125,C85N8-150,C85N8-160 C85N8-175,C85N8-200,C85N8-250,C85N8-300 |
|
Série C85N10 . |
C85N10-25,C85N10-50,C85N10-75,C85N10-80,C85N10-100,C85N10-125,C85N10-150,C85N10-160,C85N10-175,C85N10-200,C85N10-250,C85N10-300,C85N10-350,C85N10-400,C85N10-450,C85N10-500 |
|
Série C85N12 . |
C85N12-25,C85N12-50,C85N12-75,C85N12-80,C85N12-100,C85N12-125,C85N12-150,C85N12-160,C85N12-175,C85N12-200,C85N12-250,C85N12-300,C85N12-350,C85N12-400,C85N12-450,C85N12-500 |
|
Série C85N20 . |
C85N20-25,C85N20-50,C85N20-75,C85N20-80,C85N20-100,C85N20-125,C85N20-150,C85N20-160,C85N20-175,C85N20-200,C85N20-250,C85N20-300,C85N20-350,C85N20-400,C85N20-450,C85N20-500 |
|
Série C85N25 . |
C85N25-25,C85N25-50,C85N25-75,C85N25-80,C85N25-100,C85N25-125,C85N25-150,C85N25-160,C85N25-175,C85N25-200,C85N25-250,C85N25-300,C85N25-350,C85N25-400,C85N25-450,C85N25-500 |
